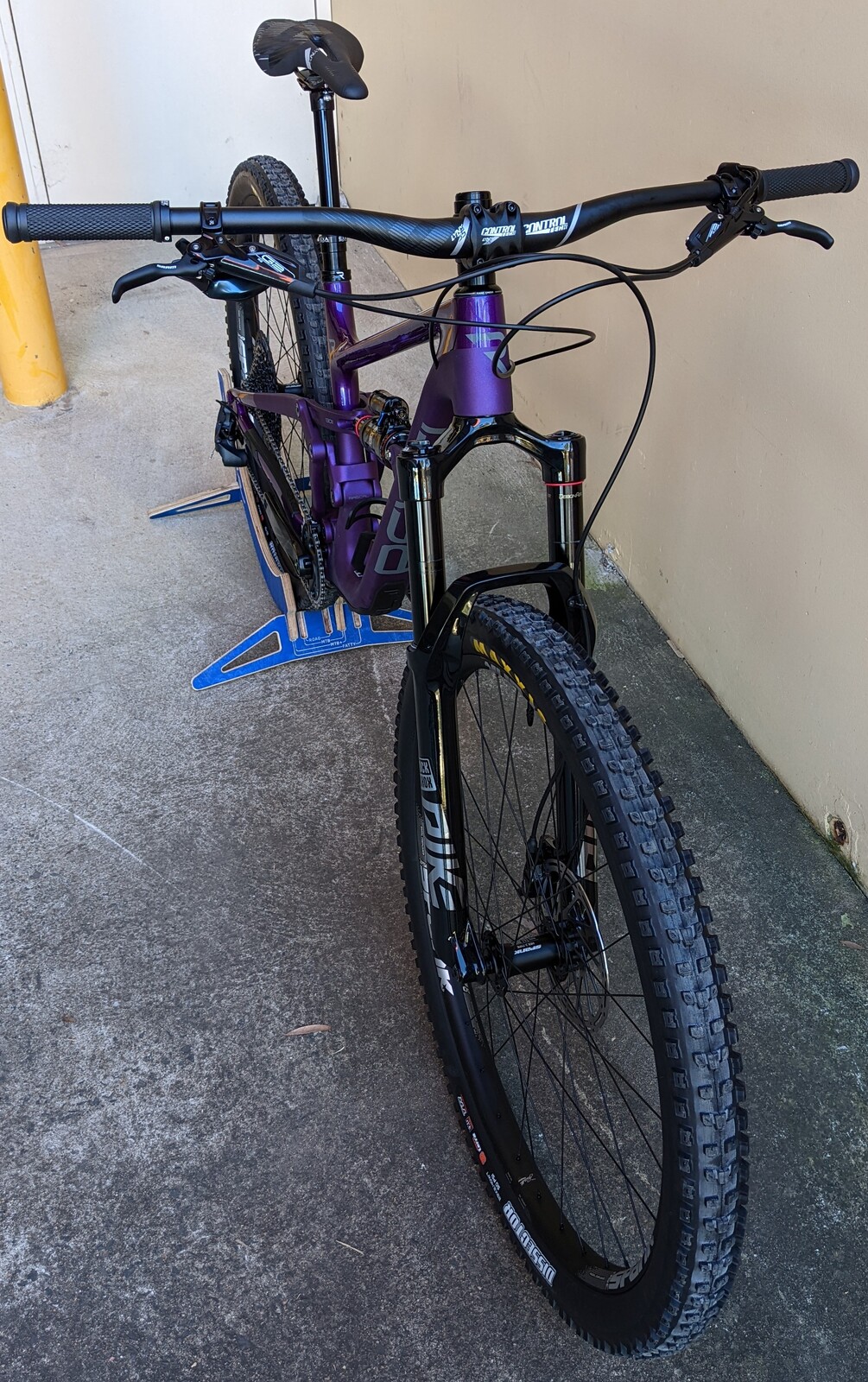

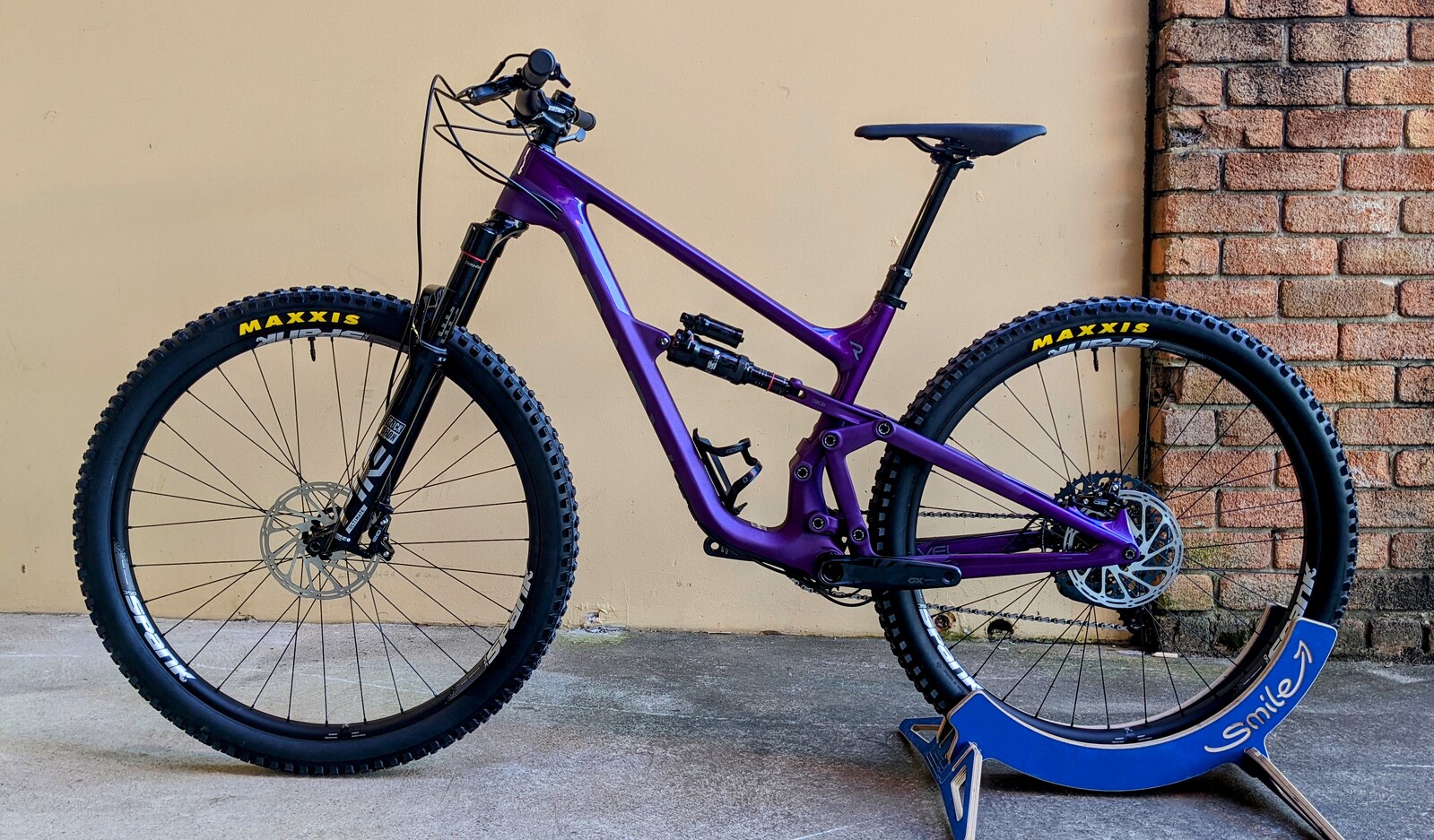

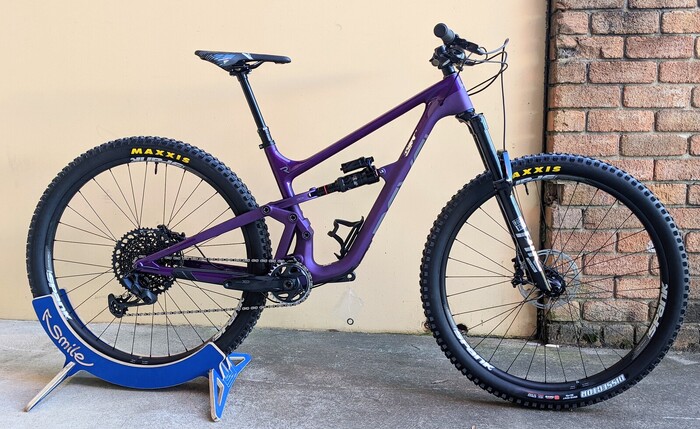

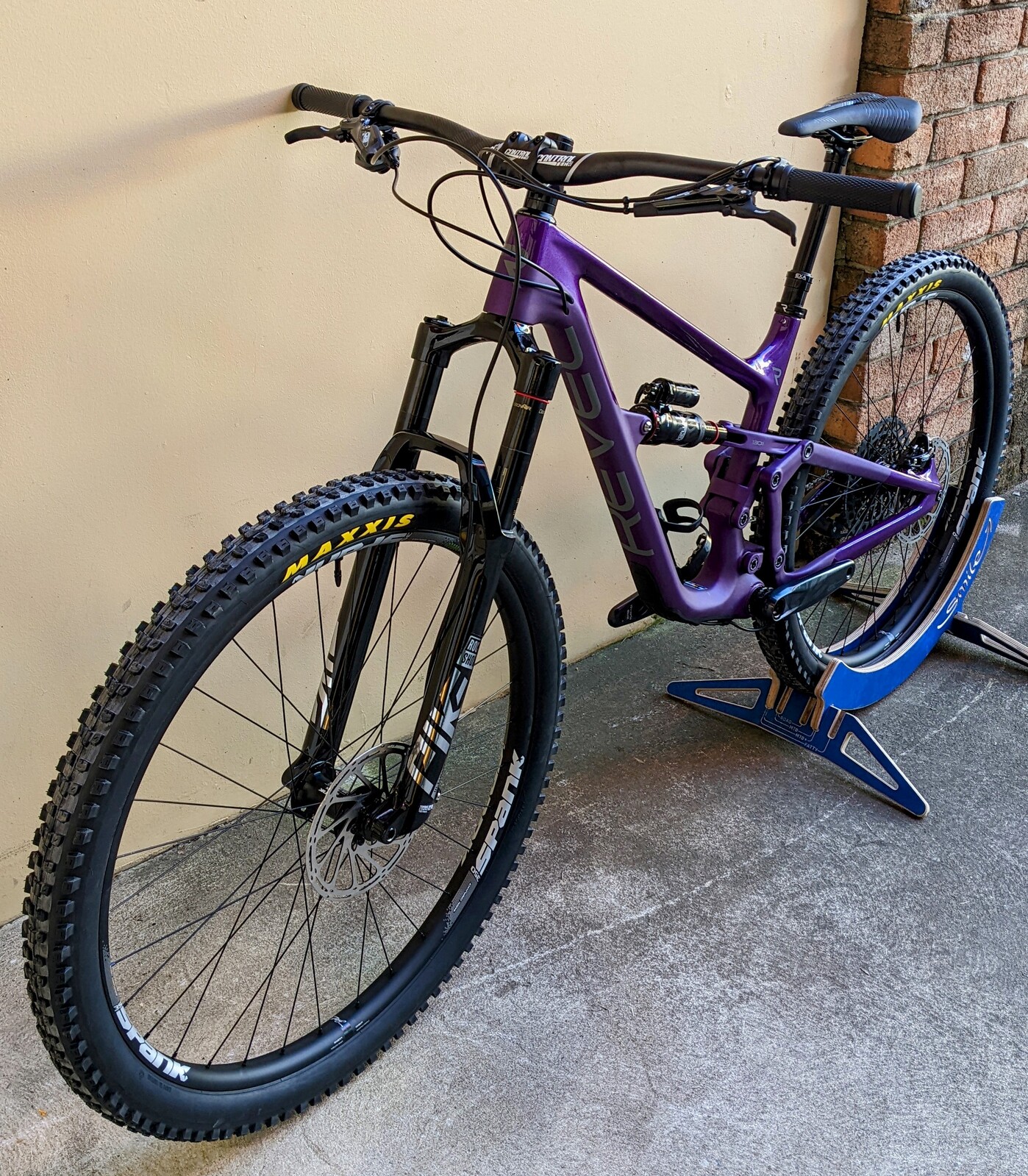

We have a specially built Revel Rascal so you can experience this amazing bike yourself - with a carefully selected range of parts, this bike is the perfect match for conditions in Australia and New Zealand.

This bike will be partially built in it's standard bike box. ORBO strongly recommend that this bike is built by a trained mechanic, at a bike shop, or a mobile bike mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any damage resulting from faulty assembly will not be covered by the warranty.

Sizing advice can be seen in our story here.

Item Description
GX Build

Frames and Suspenion
Revel Rascal LYB Purple Med
Rockshox Super Deluxe Rear shock

Pike Ultimate Gloss Black 140

Groupset SRAM
GX Shift Lever Bar mount
GX Crankset 175mm
SRAM Eagle Chainring 32T Black
Bottom Bracket
GX Chain
GX Eagle Cassette
GX Rear Derailleur

SRAM Brakes
Guide G2 RS front brake
Guide G2 RS rear brake
180mm Front rotor
180mm Rear rotor

Wheels
Spank 350 Boost Rear Wheel 29in 32H 148mm Black
Spank 350 Boost Front Wheel 29in 32H Black
SRAM XD freehub
Pair Valve Cap tubeless black
Sealant
Maxxis Dissector 29 x 2.4  front
Maxxis Dissector 29 x 2.4 rear

Cockpit
Control Tech Lynx 35mm stem 40mm length
Control Tech grip

Control Tech Lynx bar 800mm wide 20mm rise

Control Tech Lynx saddle
Headset Spacer kit black

Dropper
EXAFORM 900i 150mm

29ER WHEELS; 130MM REAR/ 140MM FRONT

The Rascal lives up to its name- it is a sleek looking machine that is mischievously fast, nimble, and adept. Think capability and playfulness in both ascend and full send mode. Revel's vision for the Rascal was to deliver a confidence-inspiring and ultra-versatile mountain bike in all applications. The Canfield Balance Formula is the heart of every Revel bike, which maximizes the amount you pedal in the sweet spot. The Rascal is a fast and capable mountain bike in a sleek package that you can ride every day, regardless of terrain.

Sizing advice can be seen in our story here.



Size SM (15.2'/ 385mm) MD (16.3’/ 415mm) LG (17.5’/ 445mm) XL (18.7’/ 475mm)
Head Angle 66 66 66 66
Seat Angle 75 75 75 75
Virtual TT 23.1 in. / 588mm 24.0 in. / 610mm 24.9 in. / 633mm 26.0 in. / 660mm
Seat Tube Length 15.2 in. / 385mm 16.3 in. / 415mm 17.5 in. / 445mm 18.7 in. / 475mm
Head Tube Length 3.8 in. / 96mm 4.2 in. / 107mm 4.6 in. / 116mm 5.0 in. / 127mm
Bottom-Bracket Height 13.2 in. / 335mm 13.2 in. / 346mm 13.2 in. / 346mm 13.2 in. / 346mm
Chainstay Length 17.0 in. / 433mm 17.0 in. / 433mm 17.0 in. / 433mm 17.0 in. / 433mm
Stack Height 23.6 in. / 600mm 24.0 in. / 610mm 24.3 in. / 618mm 24.7 in. / 628mm
Reach Length 16.7 in. / 424mm 17.5 in. / 444mm 18.3 in. / 464mm 19.3 in. / 489mm
Standover Height 26.9 in. / 682mm 27.1 in. / 689mm 28.2 in. / 716mm 29.0 in. / 736mm
Wheelbase 46.5 in. / 1182mm 47.3 in. / 1202mm 48.0 in. / 1220mm 49.1 in. / 1247mm


Specifications


Wheel Size 29’
Front Travel 140mm
Rear Travel 130mm
Shock Spec 210 x 50-22.2 x 8 Hardware Spec
Boost Axles 148mm rear / 110mm front
Seatpost Diameter 31.6mm (use the size guide to choose the best dropper height!)
Bearings BOLU 6801 VRS full complement, 12mm x 21mm x 5mm 18pcs per bike
Rear Brake 180mm post mount / 203mm max
Tire Clearance 29’ x 2.4’ (CEN Standard: 2.4’)
Bottom Bracket Threaded (73mm English threaded)
Chainguide Custom Revel guide included
Tapered Headtube IS42 upper / IS52 lower
Colors Alaska / T1000
Sizes S / M / L / XL
Frame Warranty Lifetime Warranty(Details HERE)

Got a question? Send us an email to sales@offroadbikesonline.com.au
