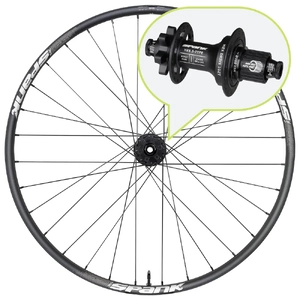

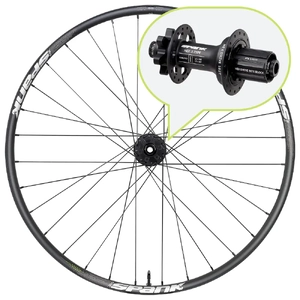

SPANK 369 Vibrocore 29" Rear Wheel | 32H Hex Boost 12x148mm (Excludes Freehub)

The SPANK 369 Vibrocore™ 29-inch Rear Wheel is an elite ASTM 5 rated mountain bike wheel engineered for Trail, Enduro, Downhill, and Freeride. Featuring a low-profile 19mm rim height for unmatched radial compliance, a wide 30.5mm inner width, and a high-engagement HEX J-Type Boost Hub, this rear wheel delivers predictable handling and maximum traction over harsh trail chatter.

Key Features & Benefits

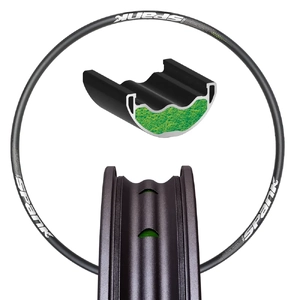

• Vibrocore™ Vibration Dampening: Features a proprietary foam core inside the inner rim well that dampens harmful high-frequency vibrations, reducing rider fatigue and extending the fatigue life of your rim and suspension.
• Radial Compliance & Lateral Stiffness: The optimized 19mm profile height balances vertical flex to boost traction over bumps while maintaining high lateral stiffness for sharp, aggressive cornering.
• Versatile 30.5mm Inner Width: Generous internal rim width perfectly supports mountain bike tires from 2.0” to 2.6”, preventing tire profile squaring and improving cornering security.
• Bead Bite™ Tubeless Technology: Patented tubeless hooks greatly enhance tubeless tire security and prevent burping, even when running extra-low tire pressures.
• Superboost Compatible: The 150/157mm configurations are natively compatible with Superboost bike frames, including Pivot, Evil, Devinci, and more.
• E-Bike Ready: Recommended for high-torque E-MTB applications when paired with a heavy-duty SPANK HEX DRIVE steel freehub body (sold separately).

Technical Specifications & Fitment

Wheel & Hub Specifications

Variant Fitment Matrix

+---------------------------------------------------------------------------------------------------------+

| Variant SKU  | Wheel Size | Hub Spacing      | Freehub Type | Weight | ERD   | ETRTO     | Spoke Length  |
+---------------------------------------------------------------------------------------------------------+

| SPK-RW-275-A | 27.5"      | 12x148mm Boost   | Shimano HG   | 1219g  | 560mm | 584x30.5  | R-270 / L-273 |
| SPK-RW-275-B | 27.5"      | 12x148mm Boost   | SRAM XD      | 1211g  | 560mm | 584x30.5  | R-270 / L-273 |
| SPK-RW-275-C | 27.5"      | 12x150 / 12x157mm| Shimano HG   | 1220g  | 560mm | 584x30.5  | R-270 / L-273 |
| SPK-RW-275-D | 27.5"      | 12x150 / 12x157mm| SRAM XD      | 1212g  | 560mm | 584x30.5  | R-270 / L-273 |
| SPK-RW-29-A  | 29"        | 12x148mm Boost   | Shimano HG   | 1267g  | 598mm | 622x30.5  | R-289 / L-292 |
| SPK-RW-29-B  | 29"        | 12x148mm Boost   | SRAM XD      | 1259g  | 598mm | 622x30.5  | R-289 / L-292 |
| SPK-RW-29-C  | 29"        | 12x150 / 12x157mm| Shimano HG   | 1268g  | 598mm | 622x30.5  | R-289 / L-292 |
| SPK-RW-29-D  | 29"        | 12x150 / 12x157mm| SRAM XD      | 1260g  | 598mm | 622x30.5  | R-289 / L-292 |
+---------------------------------------------------------------------------------------------------------+

(Note: Factory standard options include XD and Shimano HG. Shimano Micro Spline freehubs are sold separately).

Compatible Service Parts & Accessories

Keep your SPANK wheelset performing like new with genuine service parts:

• HEX Rear Hub Bearing Kits: Available for both HG/HGR and XD/XDR hub configurations.
• Replacement Axles: SPANK HEX Boost Rear Hub Alloy Axle Shafts & 150/157mm Alloy Axle Shafts.
• Upgraded Freehubs: HEX Rear Hub Alloy Anti-Bite Freehubs (HG & XD options).
• E-Bike Upgrades: SPANK HEX DRIVE Steel Freehubs (Available in HG, XD, and Microspline).
