A La Carte Wheels - choose the combination that works best for you.

Whether you're looking to replace an existing rim or custom-build the perfect wheel, Spank offers a wide variety of rims and other wheel components to suit every rider and type of terrain.

Follow the links to see HUBS and SPOKES

  • This ultra-wide, high performance rim is optimized for E-Bike, trail, and all mountain use
  • Tubeless ready and with Bead Bite tubeless hooks, help keep the tyre on in all conditions and prevent loss of pressure

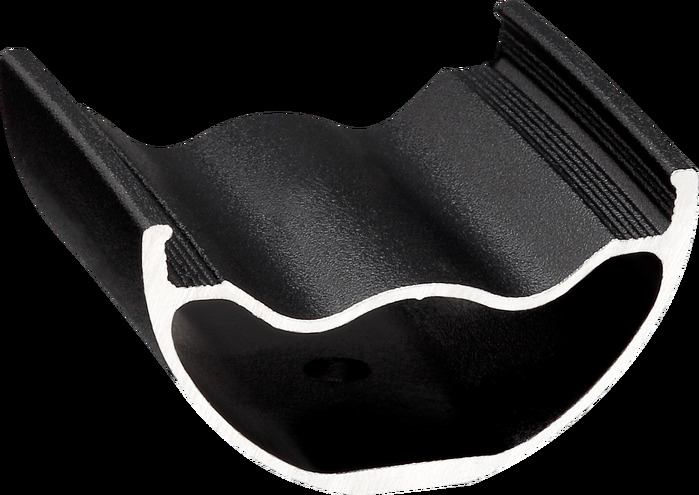

  • The corrugated rim centre, coupled with 32 spokes, adds exceptional strength
  • 35mm inner width and 39.5mm outer width support high-volume tyres
  • A great choice for your bikepacking rig
  • Spoke washers which MUST be used on all rims. Failure to use the washers will void the warranty.
  • Spank Double Concave Spoke washers available here Sold Separately

Spank Industries recommends that for a good balance of strength, durability and comfort in your wheelset built with Spank rims, that a target spoke tension of roughly 110-120 kgf is optimal.

Recommended for:  All mountain, trail, E-Bike. Heavy to Light riders and Impacts

 Hole Count:  32
 Sizes:  27.5"/650B & 29"/700C
 Weight (approx):  560g / 590g
 Inner Width:  35mm
 Outer Width:  39.5mm
 Profile Height:  22mm
 ETRTO:  584x35 / 622x35
 ERD++:  554++ / 591++
 Tubeless:  Tubeless Ready
 Valve Type:  F/V Presta
 Tyre Fit:  2.3" to 3.0"
 Features:  Oobah Inverted Inner Wall, BeadBite anti-burp
 Spank ERD++:  = Rim diameter (mm) with 2x spoke bed thickness (mm) included
 [++] = add your own nipple head height in mm x2



SKU SPA-OOZY-TRAIL395-RIM
Brand Spank
Shipping Width 0.660m
Shipping Height 0.090m
