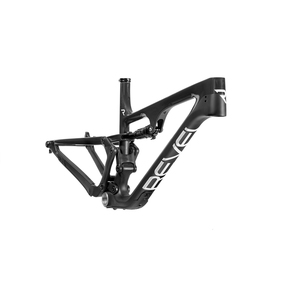

Revel Bikes Ranger 29" XC MTB Frame set
Revel Bikes Ranger Frameset
RRP: $4,899.00
WHY REVEL BIKES?
At Revel Bikes, their goal is making the absolute best full suspension mountain bikes in the world. To do this, they are the only company using the mostly unheard of, yet legendary CBF suspension design. Revel use incredible carbon layup technology developed by Jason Schiers, the original founder of Enve. And Revel obsess over all the details because we love riding good bikes even more than making them.
At ORBO we take the time to ride and rate everything we sell. And after a few rides it was clear to us Revel was the brand we had to have on board. The finish, the geometry, the ride, the weight, the features all come together to make what we think is the best bike available. CBF pedals like it has 20mm less travel and descends like it has 20mm more!
Purchase custom frame wrap for your frame or bike here. Please note it adds one to two weeks to delivery time.
WHO IS REVEL BIKES?
They are life-long bike revelers - a mix of dirt-bag bikers, die-hard creators and business people. Since they're rider-owned and privately-funded, they can do what they want. Revel Bikes was launched to build the absolute best full-suspension mountain bikes - EVER.
Description
Welcome to the Ranger- a bike that takes modern XC suspension to a whole new level. It's right at home at the start line of a race, all day in the mountains or just rallying the local trails after work- the perfect machine for Australia, New Zealand or the Philippines.
Purchase custom frame wrap for your frame or bike here. Please note it adds one to two weeks to delivery time.
ORBO build options information here or below.
For information on fitment with Shimano drivetrains see our story here.
Contact us if you would like to arrange a demo ride - some fees may apply. If you don't want to miss out on a bike you can reserve a bike or frame with a deposit here.
Includes - Frame + Shock + Headset + rear thru Axle.
Sizing advice can be seen in our story here.
| Specification | |
|---|---|
| Wheel Size | 29 |
| Front Travel | 120mm |
| Rear Travel | 115mm |
| Shock Spec | 190 x 45-22.2 x 8 Hardware Spec |
| Boost Axles | 148mm rear / 110mm front |
| Seatpost Diameter | 31.6mm (Use our size guide to choose the best dropper height Here) |
| Bearings | BOLU 6801 VRS full complement, 12mm x 21mm x 5mm 6pcs per bike, BOLU 6901 VRS full complement, 12mm x 24mm x 6mm 12pcs per bike |
| Rear Brake | 160mm post mount / 180mm max |
| Tire Clearance | 29 x 2.6 or 27.5 x 2.8 |
| Bottom Bracket | Threaded (73mm English threaded) |
| Chainguide | Custom Revel guide included |
| Tapered Headtube | IS42 upper / IS52 lower |
| Colors | Johnny Green Jeans / De La Coal |
| Sizes | S / M / L / XL |
| Frame Warranty | Lifetime Warranty |
Geometry
Click image below for large image
| SKU | REV-300-FRA20-1101 |
| Brand | Revel Bikes |
| Shipping Weight | 7.0000kg |
| Shipping Width | 0.310m |
| Shipping Height | 0.470m |
| Shipping Length | 1.170m |
| Shipping Cubic | 0.170469000m3 |
| Type | Revel Bikes and Frames |
