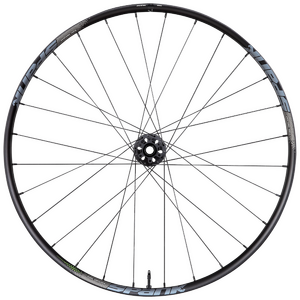

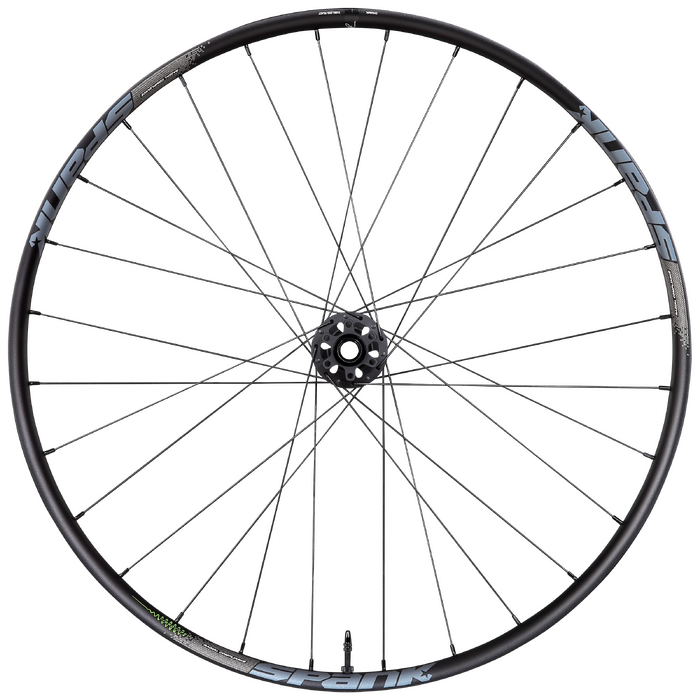

Spank Hex Flare 24 OC Vibrocore Rear Wheel 700C/29in 28H 142/135

  • Disc specific, tubeless ready, clincher rim, with Vibrocore, optimized for Gravel, Adventure, and MTB Cross Country use
  • Vibrocore inner well reduces the transmission of harmful vibration frequencies, improving rider comfort and increasing the fatigue life of the rim
  • Low profile 16.5mm depth, and wide 27.5mm outer width enhance Radial Compliance, improving traction, while reducing negative feedback to the rider
  • Asymmetric, 24mm inner width profile improves spoke tension balance between drive side and non-drive side spokes, and optimizes gravel/XC tire spread
  • Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures


Recommended for: Gravel, XC


Rim Specifications:

Hole Count:  28H
Inner Width (mm):  24
Outer Width (mm):  28
Profile Height (mm):  16.5
Tyre Fit:  35-62mm / 1.5-2.3"


Build Specifications:

Build:  Handbuilt
Hub:  Spank Hex Gravel J-Type
Disc Mount  6-Bolt
Spokes:  J-Hook, triple-butted 2.2/1.8/2.0
Nipples:  Alloy external
Lacing:  3 cross lacing
Valve:  F/V Presta
Tubeless:  Tubeless taped and valved


Variant Specs:

Size   Hub Hub Spacing Hole Count Adapter Incl. Weight Approx. ERD ETRTO Spoke Length Right (mm) Spoke Length Left (mm)
 27.5"  Front Hex J-Type 12x100 28H QRx100 755g  564++  584x24 278 277
 27.5" Rear Hex J-Type 12x142 28H QRx135 920g  564++  584x24 277 278
29" Front Hex J-Type 12x100 28H QRx100 788g  602++  622x24 297 296
29" Rear Hex J-Type 12x142 28H QRx135 950g  602++  622x24 296 297


SKU 80275193
Brand Spank
