Revel Ranger V1: 29 Inch wheels, 120mm front/115mm Rear Travel



Welcome to the Ranger- a bike that takes modern XC suspension to a whole new level. It's right at home at the start line of a race, all day in the mountains or just rallying the local trails after work- the perfect machine for Australia, New Zealand, or the Philippines.

Includes - Frame + Shock + Headset + rear thru Axle + Rockshox Sid Fork!

Sizing advice can be seen in our story here.

Geometry:

Specification
Wheel Size 29
Front Travel 120mm
Rear Travel 115mm
Shock Spec 190 x 45-22.2 x 8 Hardware Spec
Boost Axles 148mm rear / 110mm front
Seatpost Diameter 31.6mm (Use our size guide to choose the best dropper height Here)
Bearings BOLU 6801 VRS full complement, 12mm x 21mm x 5mm 6pcs per bike, BOLU 6901 VRS full complement, 12mm x 24mm x 6mm 12pcs per bike
Rear Brake 160mm post mount / 180mm max
Tire Clearance 29 x 2.6 or 27.5 x 2.8
Bottom Bracket Threaded (73mm English threaded)
Chainguide Custom Revel guide included
Tapered Headtube IS42 upper / IS52 lower
Colors Johnny Green Jeans / De La Coal
Sizes S / M / L / XL
Frame Warranty Lifetime Warranty



Riding The RockShox SID Ultimate means every detail is considered. Packed in a stiff, lightweight 35mm chassis, and equipped with the lightest performance damper we've ever made - Charger™ Race Day. Perfectly balanced to satiate your need for XC speed.

FEATURES

  • New 35mm chassis is the perfect blend of lightweight and stiffness for the modern XC bike
  • New Charger Race Day Damper - our lightest production damper with rock-solid lockout
  • New DebonAir air spring is tuned specifically to meet the demands of XC and maintains a higher ride height for increased confidence and control
  • New Ultra-low friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel
  • Maxima Plush damping fluid reduces friction and silences damper noise
  • Machined/anodized crown
  • New short fender compatibility. Includes RockShox branded 2-bolt short fender
  • Signature SID Blue colorway and Ultimate High Gloss Black
  • Ultimate foil graphics package
  • Remote options include TwistLoc remote

(80275175)

Lifetime Limited warranty directly from revelbikes.com

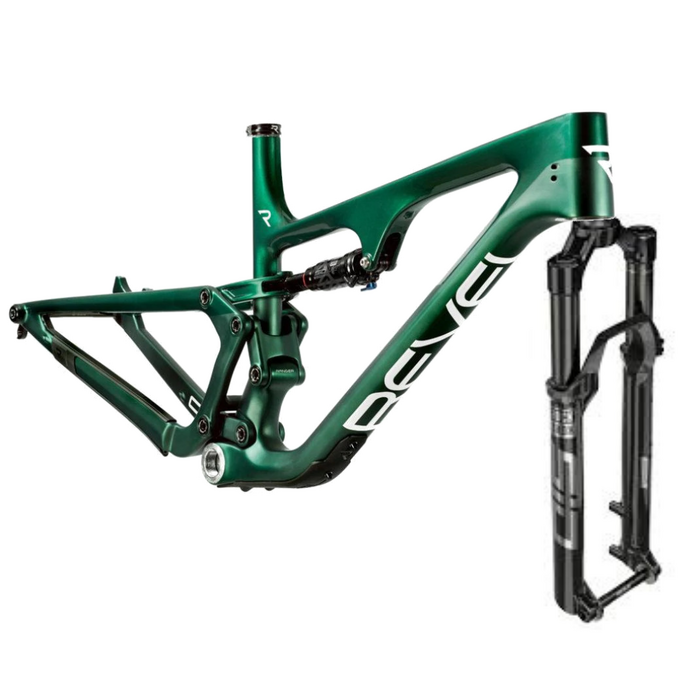

Revel Ranger Frame & Rockshox Sid Fork

SKU 80275175
Brand Revel Bikes
Artist / Author Micheal
Shipping Weight 5.0000kg
Shipping Width 0.200m
Shipping Height 0.800m
Shipping Length 1.000m
Shipping Cubic 0.160000000m3
